Animated Voxel model Plugin for Construct 3

Voxel Model for Construct 3

Bring your MagicaVoxel creations into Construct 3 as real 3D objects. Drop in a .vox file, place it in your layout and see it right in the editor. It turns and moves like any other Construct 3D object, so there's no special setup.

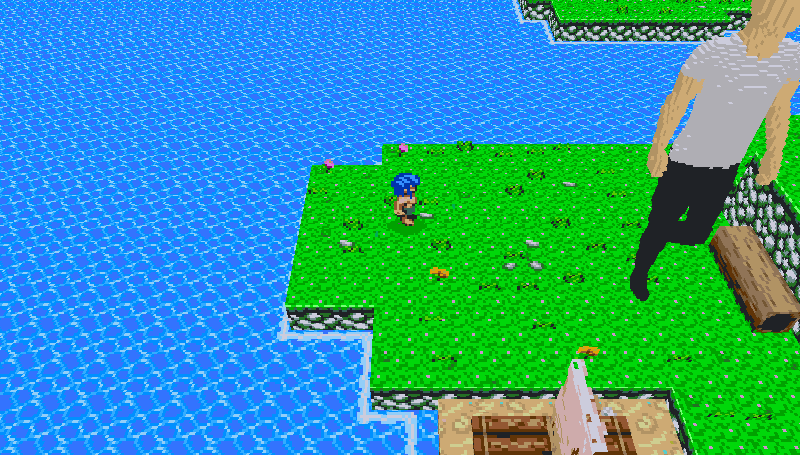

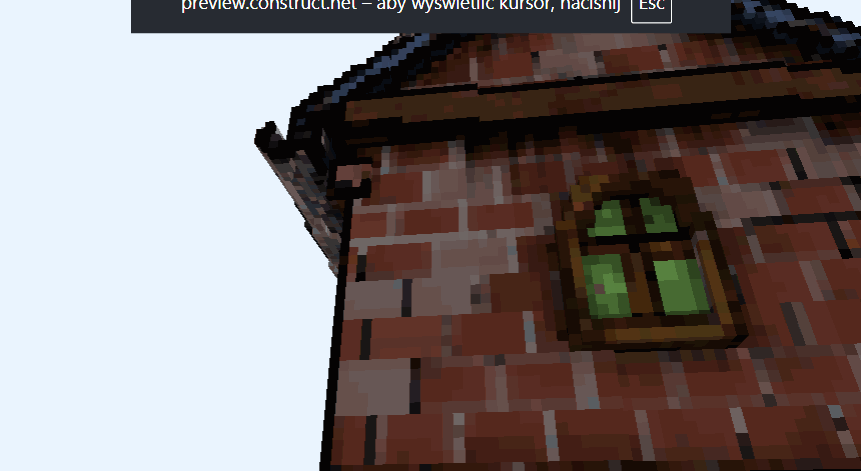

Use it for characters, props, buildings or a whole voxel world. Animations from MagicaVoxel play in your game too.

Features

• Loads MagicaVoxel .vox files directly

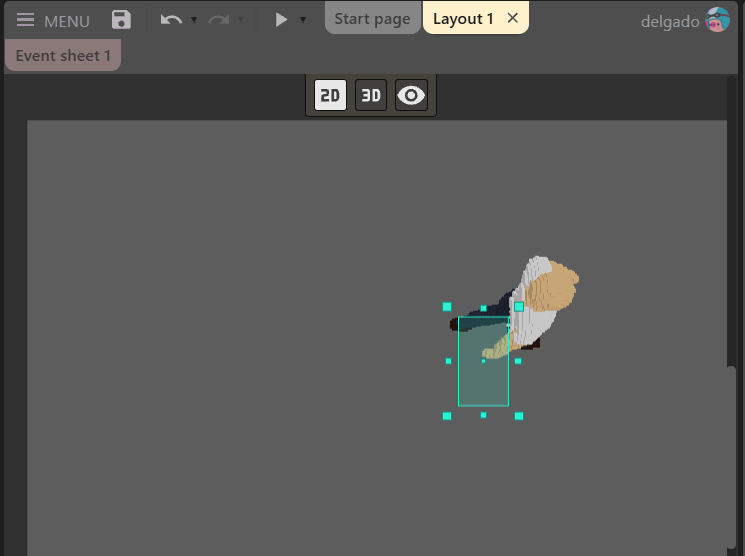

• Shows the model in the layout editor, in 2D and in the 3D viewport
• Real 3D depth: the model works with Z elevation, Depth and the native 3D camera
• Uses Construct's native 3D rotation (Angle X / Y / Z), so the usual actions and expressions work
• Plays MagicaVoxel animations, with a list of the animations found in the file
• Actions to play, loop and set the speed of animations

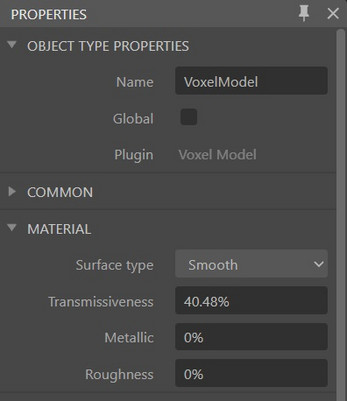

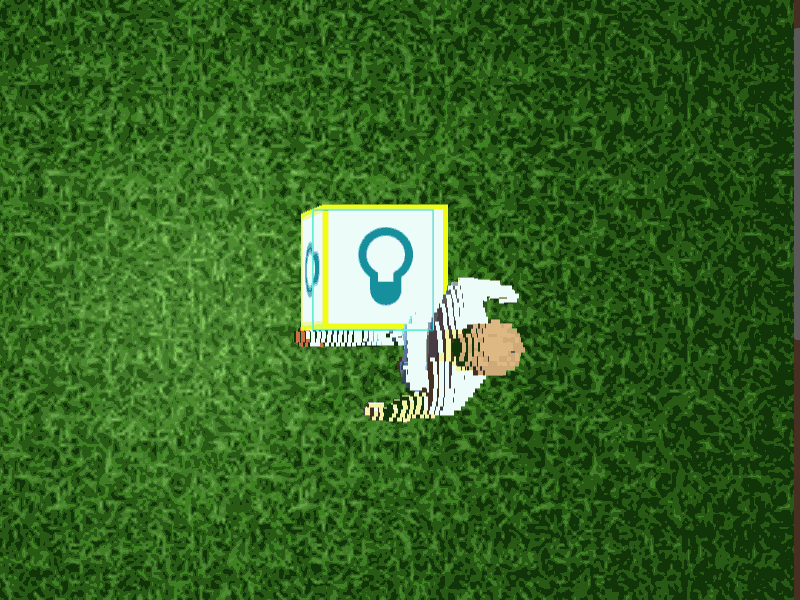

• Works with native 3D Lights: set the Material to Flat and the light shades your voxels
• Optional ambient occlusion for soft shadows in creases

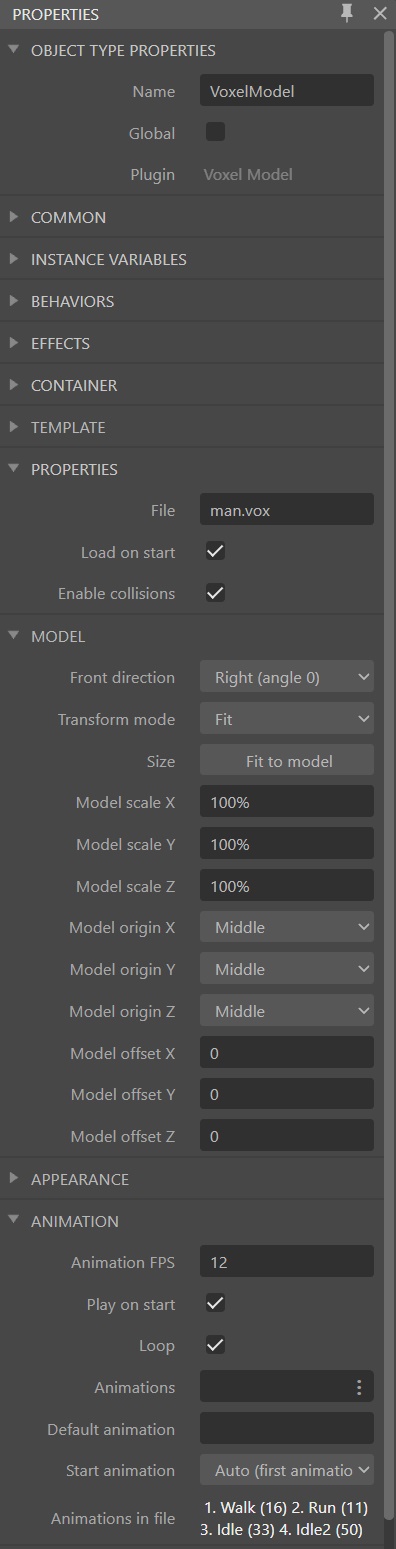

• Model box controls like the native 3D Model: Fit / Stretch / Original size, scale, origin, offset and a Fit to model button
• Front direction setting, so the model faces the way it moves with the 8 Direction behavior
• Collisions can be switched on
